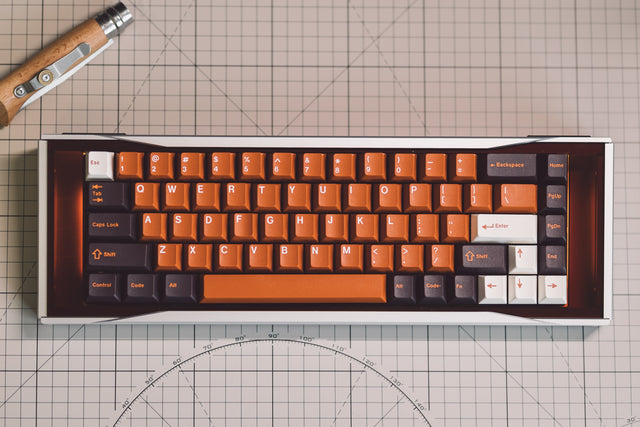

LeleLab Maxum 65

by Lelelab & XTIA

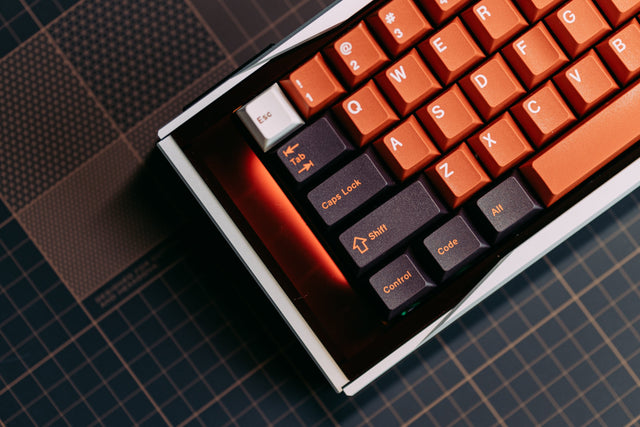

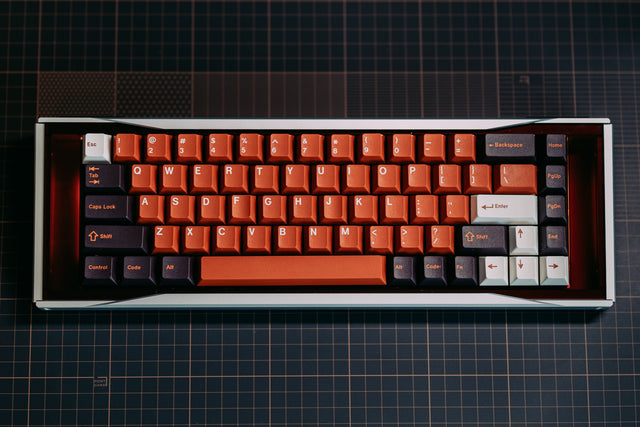

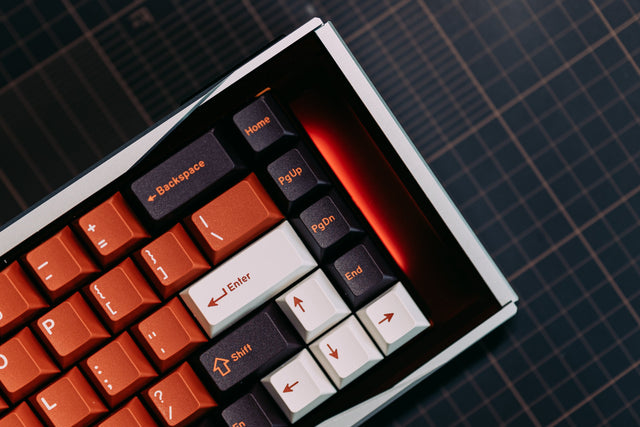

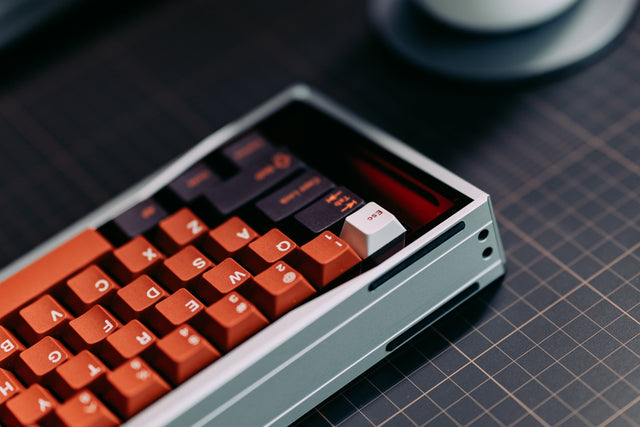

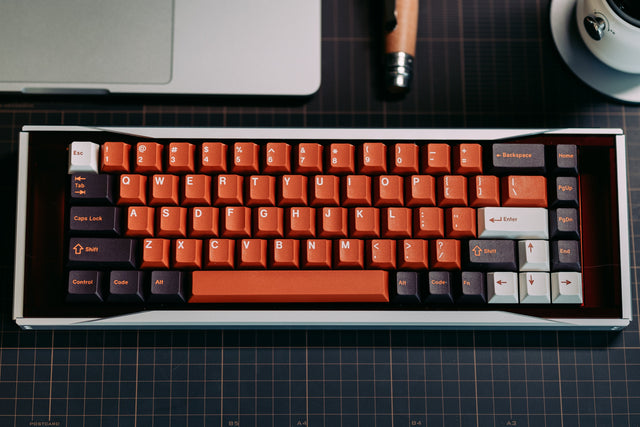

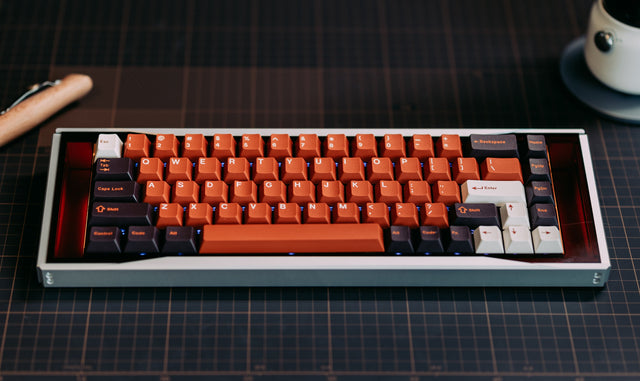

Maxum 65 is the first collaboration between LeleLab and XTIA, it inherits XTIA's rugged design in the field of PC chassis. The unique combination of multiple panels and perfect light & shadow contract showcases the aesthetic resonance between different materials.

Maxum 65 R2 offers more aluminum frame and acrylic top panel color variants for more mix-and-match freedom!

Layout Support

Dimensions (unit: mm)

• In stock and ready to ship
• Ships within 5 business days
• Shipping calculated at checkout

• Sorting tray + custom outer box

Specifications

• Model: Maxum 65
• Keys: 65
• Connectivity: supports Bluetooth 5.0, 2.4G wireless, and USB

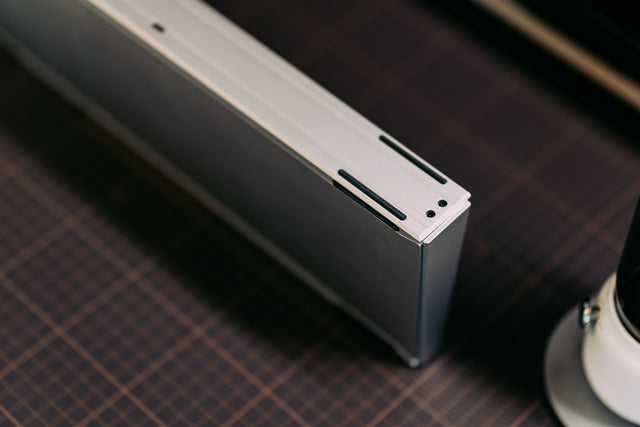

• Case Material: Anodized Aluminum
• Structure: Gasket
• Plate: FR4 plate with extended cantilever beams and soft silicone dampeners
• Capacity: 2*1200mAh (Total: 2400mAh)

• Dimensions: 36cm*11.7cm*2cm

Features

• single-chip architecture, nRF52840, with lower power consumption.
• supports Bluetooth 5.0, 2.4G wireless, and USB connectivity
• hot-swappable, enabling quick switch replacement without soldering
• low-power wireless connection with long battery life, the 2400mAh battery lasts up to 200 days, with standby time exceeding one year (lab data)
• seamless switching between USB, Bluetooth, and 2.4G, supporting simultaneous connection of up to 7 devices
• Full key customization with LeleConsole, allowing for key configurations to be updated across multiple platforms according to preferences
• Rich functionality for key customization, including custom macros, and full anti-ghosting support for USB/2.4G
• supports RGB underglow lighting, RGB switch lighting, and LED backlight

KIT Includes

• Acrylic top cover x 1
• 6063 aluminum left plate x 1
• 6063 aluminum right plate x 1
• 6063 aluminum front plate x 1
• 6063 aluminum rear plate x 1
• 6063 aluminum bottom plate x 1
• Black M2 x 12 screws x 8
• FR4 positioning plate with antenna x 1
• Triple-mode USB/BLE/2.4G PCB x 1
• USB-C daughter board x 1
• 2.4G dongle PCB x 1
• 2.4G dongle sandblasted acrylic shell x 1
• 2.4G dongle M2 * 3 screws x 4
• GASKET silicone hats x 12
• Silicone foot pads x 8
• Poron sheets x 1
• IXPE foam switch pad x 1
• Gray silicone sound-damping insert x 1
• Screwdriver x 1
• Battery x 1

How to assemble & use Maxum 65?

• Please follow the steps from this assembly guide
• For more files and resources, visit Lelelab official Discord

Service&Care

• Avoid cleaning with organic solvents such as alcohol. Please use a cloth dampened with clean water. Do not immerse in water.
• Warning: Choking hazard. This product contains small parts, please keep away from children.

• Compatibility: MX-style mechanical switches&magnetic switches

• NOT compatible with membrane, scissor, or electrostatic capacitive keyboards.
